IS-SR4 4K 60 HDMI and 12G SDI Recording and streaming

This device integrates audio and video capture, encoding/decoding, processing, recording, live streaming, video-on-demand, remote conferencing, POE, HID control, and more—supporting features like 12G-SDI input, 4K60 video, and quad-screen display. Powered by an industrial-grade, low-power ARM quad-core processor and based on a stable embedded Linux OS, it ensures high reliability and performance.

Primarily designed for digital operating rooms, it supports image scheduling, recording, storage, teaching, and live broadcasting. It meets diverse audiovisual requirements and provides users with a comprehensive all-in-one solution.

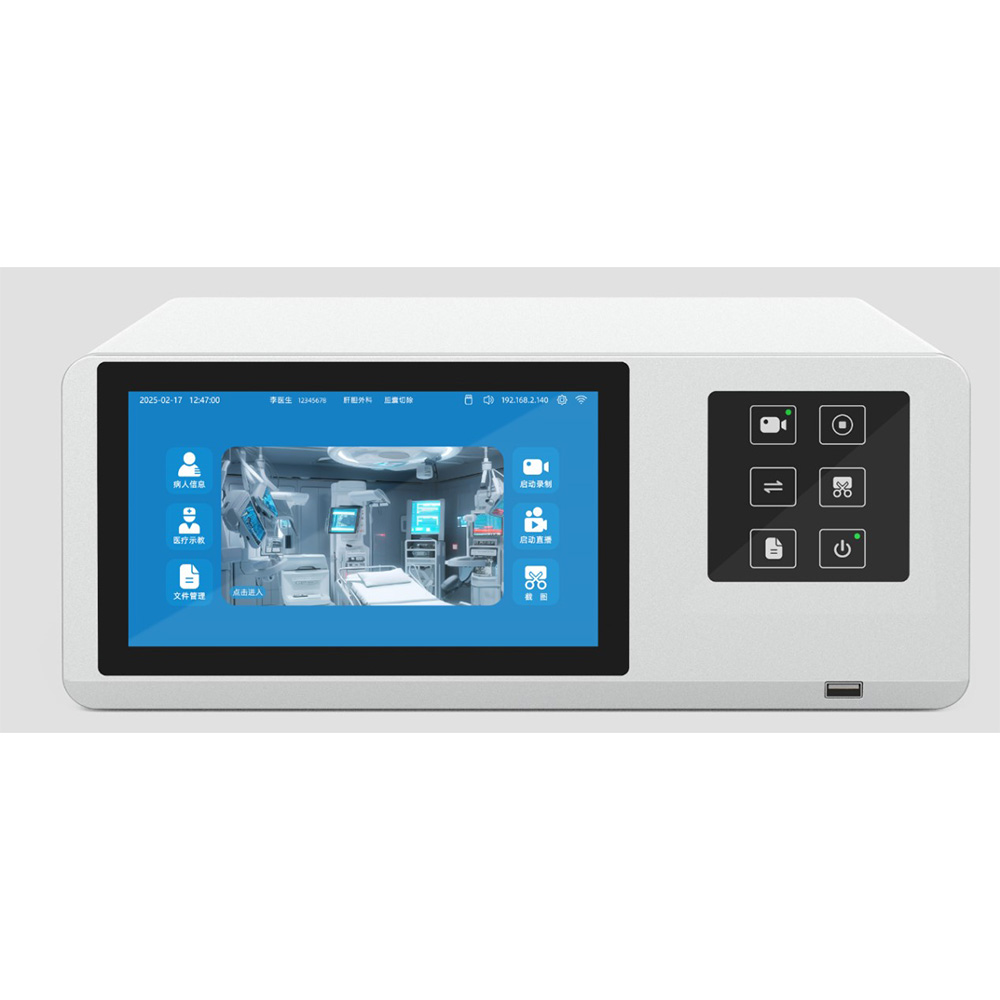

Display unit	Screen size	7 inches
	Screen brightness	≥1000cd/㎡ LCD
	Screen resolution	1920*1200
	Screen life	21900 hours
	Touchscreen	10-point capacitive, tempered glass surface
System Unit	operating system	Linux
	Number of CPU cores	5 cores
	Running Memory	8G
	Internal storage	1TB (supports replacement of large-capacity storage)
	Remote Wake-up	Support local UDP wake-up and public network TCP wake-up
	Support Agreement	HTTP, UDP, TCP, HLS, RTMP, RTSP, ONVIF, WEBSOCKET, FTP, NTP, DHCP, SIP
	Front physical buttons	6 quick operation control keys ( start recording, end recording, screen switching, screenshot, file management, power on/off)
Video Unit	Video Coding	H.264, H.265
	Input resolution	3840×2160P@60, 3840×2160p@30, 1920×1080p@60, 1920×1080p@30, 1600×1200P60, 1680×1050p@60, 1600×900 P60, 1440×900P60, 1280×1024p@60, 1280×960p@60, 1280×800p@60, 1280×720p@60, 720×480p@60, 640×480p@60
	Output resolution	3840*2160, 1920*1080
	Video recording format	MP4, TS, MOV
	Video recording bitrate	512kbps~20480Kbps adjustable
	Recording bitrate control	CBR, VBR, AVBR, QVBR, CVBR, FIXQP, QPMAP
	Video recording frame rate	25～60fps
	Live video format	RTMP, RTSP, HLS
	Live video bitrate	512kbps~20480Kbps adjustable
	Live video frame rate	25～30fps
Audio Unit	Audio compression standards	AAC
	Audio compression bit rate	32~192Kbps adjustable

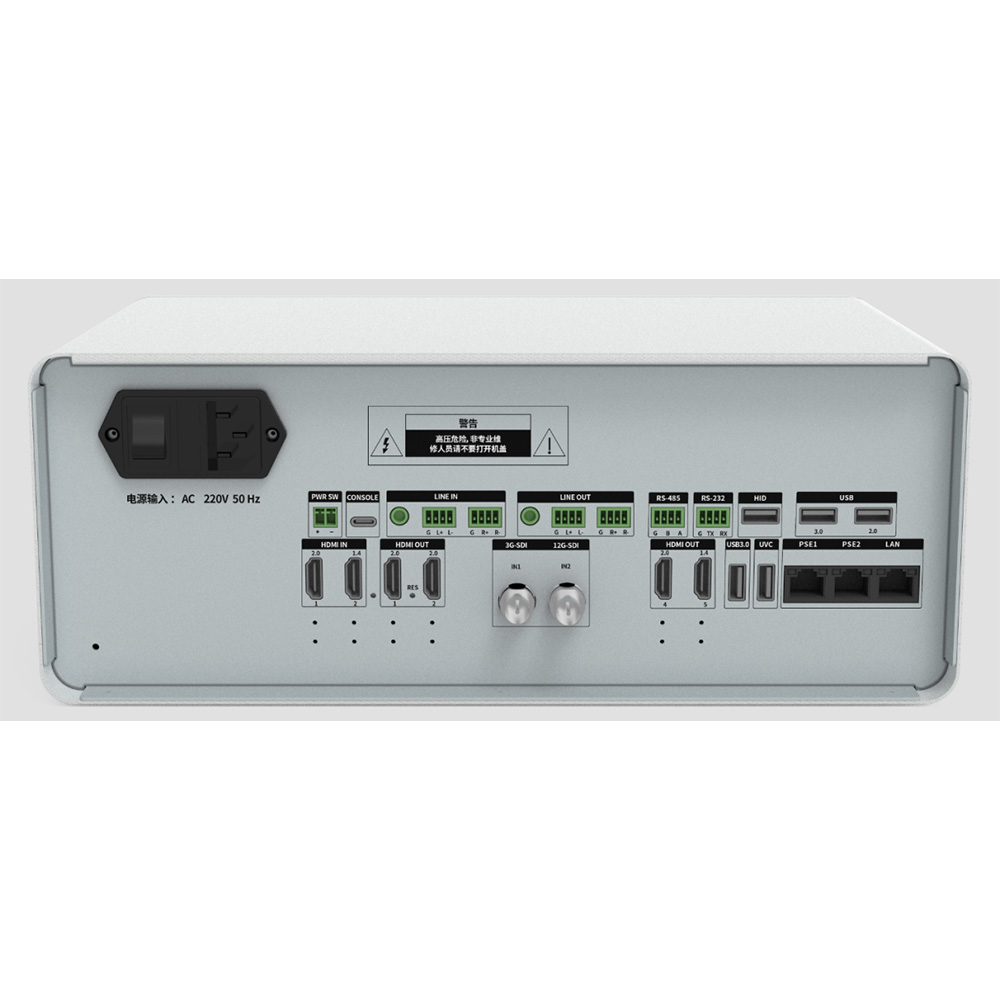

Functional Interface	Video Input	2 HDMI, 1 3G-SDI, 1 12G-SDI
	Video Output	4-way HDMI
	Audio Input	2 Phoenix terminals, 1 3.5mm LINE IN, 1 UAC audio input
	Audio Output	4 HDMI OUT, 2 Phoenix terminals, 1 3.5mm LINE OUT, 1 UAC audio output
	Network Interface	1 RJ45: 10/100/1000M adaptive
		2-way RJ45: 10/100M adaptive, support POE (802.3af/at)
	CONSOLE interface	1 Type-C interface
	232 interface	1-way Phoenix terminal RS232
	485 interface	1-way Phoenix terminal RS485
	USB interface	2-way Type-A USB3.0, 3-way Type-A USB2.0
		2-way Type-C USB2.0
	Power interface	Standard font power interface
Power supply unit	Input Power	AC 100V - 240V 50/60Hz
	Power consumption	<65W
	Standby power consumption	<2W
Operating Environment	Storage temperature	-10℃~+50℃
	Storage humidity	90%RH
	Operating temperature	0℃~40℃
	Operating humidity	70%RH
	Body color	White
	Body material	Aluminum Alloy
	Machine size	325mm (W) x 215mm (D) x 125mm (H)
	Packaging	Carton
appendix	Power cord, grounding wire, warranty card, CD instruction manual, packing list
