IS-Dec01 IP to HDMI/ VGA/ CVBS Decoder

PRODUCT INTRODUCTION

1.Decode 1-4 network video streams, 4 screen output can set the screen layout
2.Decode multiple protocols HTTP TS/HLS/FLV/RTSP/SRT/RTMP/RTMPS/UDP/RTP
3.PTE/PTL decoder low latency, LAN latency of 80-200 ms
4.Maximum decoding capacity: 1 decoder and output 1 channel 2160P30 or decode 4 channels 1080P25 output 1 channel 1080P60
5.Support ONVIF to find the IP camera RTSP address, and decode the address

DATESHEET VIDEO

PRODUCT SPECIFICATION

PRODUCT DETAILS

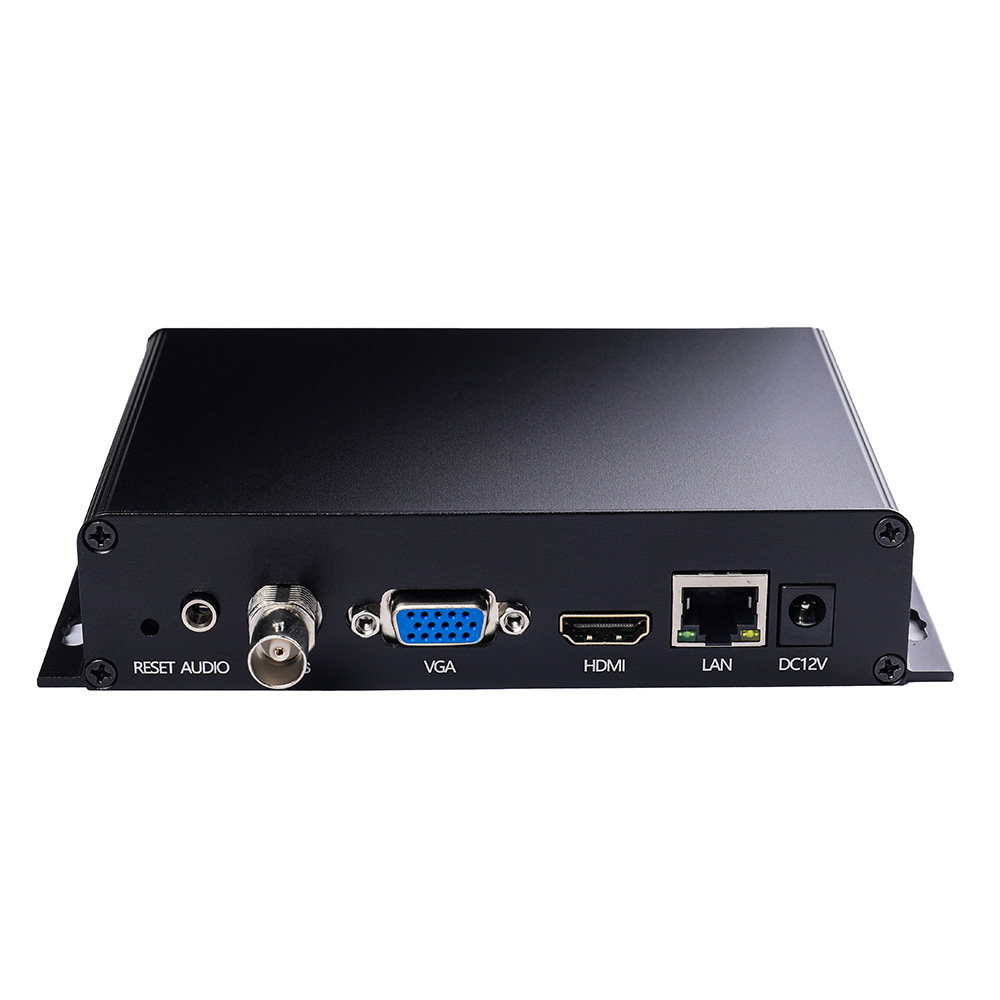

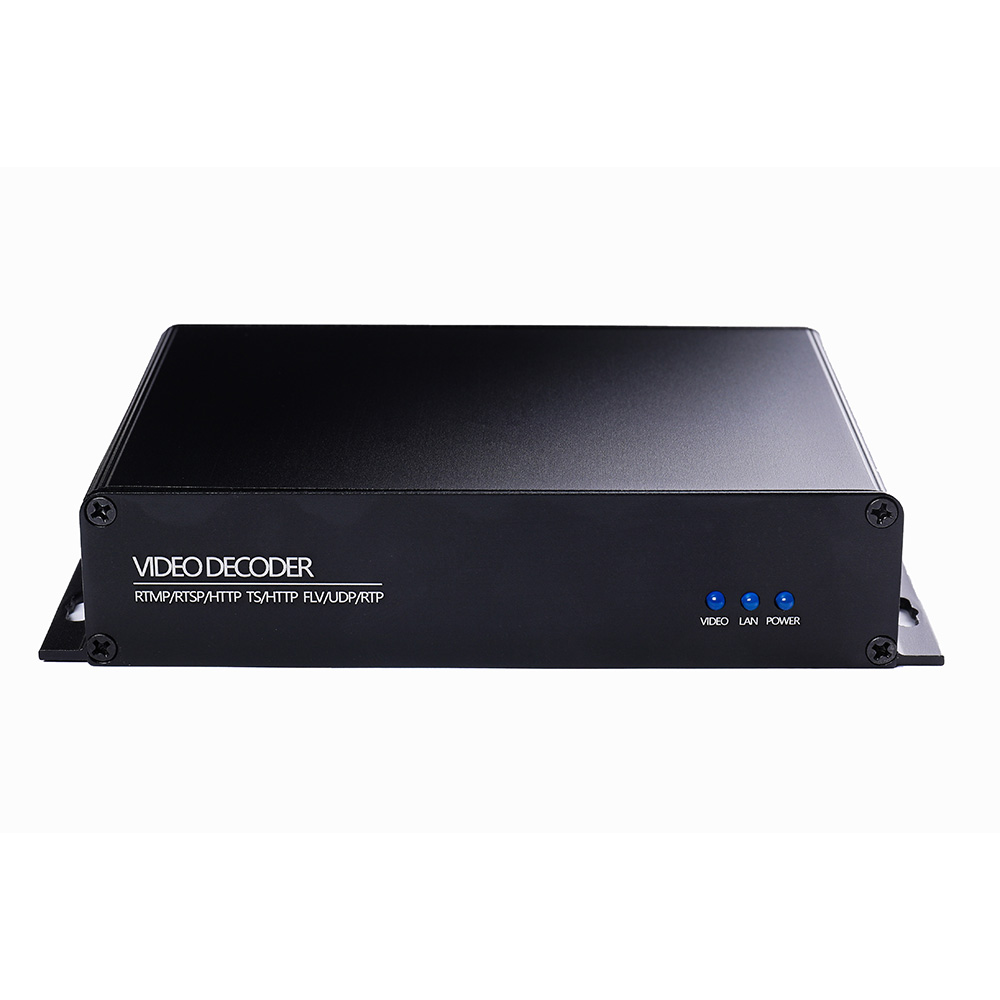

The IS-Dec01 HDMI CVBS VGA Decoder is a high definition resolution supported decoder, which supports output video at 4K@30 via HDMI, and up to 1080@60 over VGA interface and SD for CVBS .

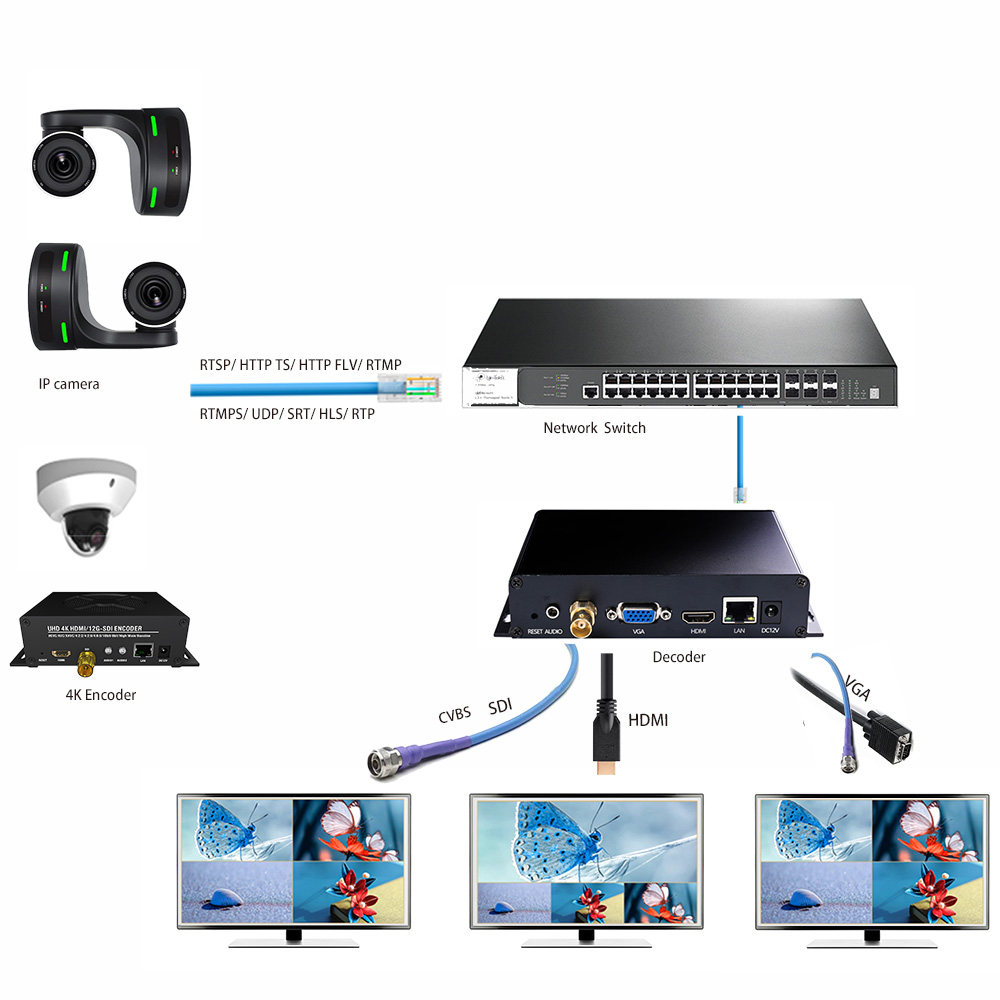

Like a decoder for the video wall, the IS-Dec01 supports multiple videos (up to 4) mixing and output via HDMI/ CVBS/ VGA.

Specification		Parameter
Media Access	Standard Agreement	HTTP TS/HTTP FLV/RTMP/RTMPS/ RTSP/ RTSPS/UDP/SRT/RTP/HLS
Media Access	Private Agreement	HTTP PTE
Video decode	Type	H.265/H.264
	frame rate	1-60
	Bit rate(k bit)	32-32000
	Resolving power	Maximum support 2160P@30
	Number of routes	1-4
Audio decode	Type	G711A/G711U/AAC+/AAC++/MP2/MP3
	Number of Channels	single channel/Dual Channel
	Sampling rate Hz	8000/11250/22500/44100/48000
	Number of routes	1
Video Output	HDMI	2160P@30/1440P@30/1080P@60/1080I@60/ 1080P@50/1080I@50/1080P30/1080P25/720P60/720P50/576P50/480P60
	VGA	1080P@60/1080I@60/1080P@50/1080I@50/1080P30/ 1080P25/720P60/720P50/576P50/480P60
	CVBS	PAL/NTSC
	Color	Brightness, Contrast, Chroma, Saturation
Audio Output	HDMI	48KHz Dual Channel Output
	3.5MM	Dual Channel Output
	Enabling	Disable/Enable
Common	Network	1000Mbps
	Configuration	WEB,Upload,Reset
	Power Supply	12V/DC,2A
	Power	<5W
	Temperature	-20℃+60℃
	Humidity	<90%, non-condened
	Size	15.5x10.2x3.2cm
	Weight	316g
